Elevated · packaging review

AiR-ESS Gummies

Print files for the stand-up pouch, built on the die from the factory template and matched to the render your customer signed off on. Two options, and B — without the AiR-ESS wording — is shown first because you have said it is the likely one. Each option is a single, complete download.

What this is

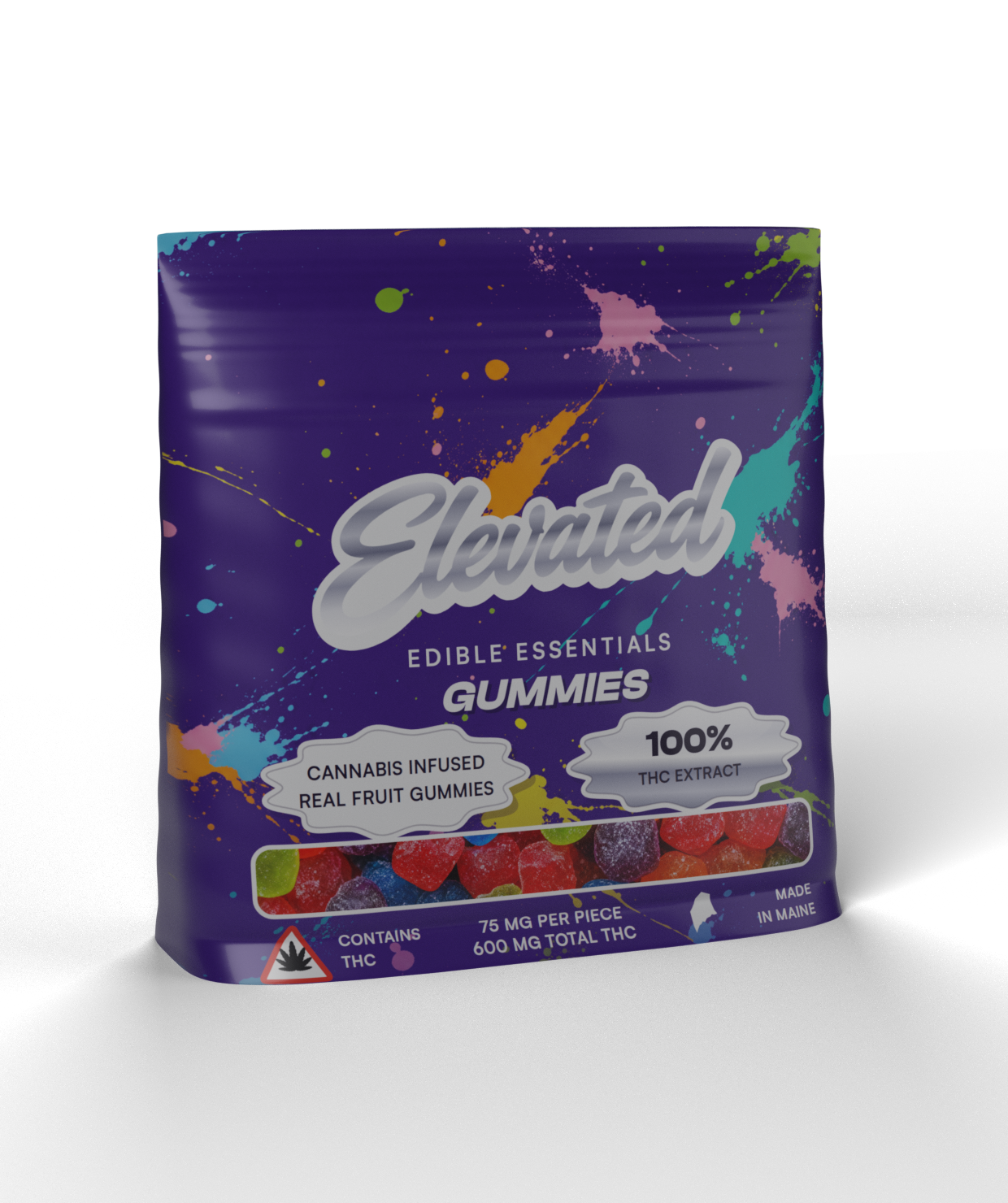

Every image here is rendered from the actual print artwork on the actual die — not a visualisation. The pouch shape, the zipper position, the window and the way the bottom curves under are all geometry, so what you see is what the plant makes.

Laid out the way this plant already reads — numbered plates per panel with BLACK-is-<what> naming, a reference folder and the two plain-text documents. Each option is one download and it is complete on its own — every plate, both documents and the factory spread, with nothing shared between the two and nothing to merge.

Changed in this round

Your revisions of 31 July, applied to every asset on this page — both options, both panels, the flats, the 3D shots, the plates, the CMYK TIFFs and the factory spread.

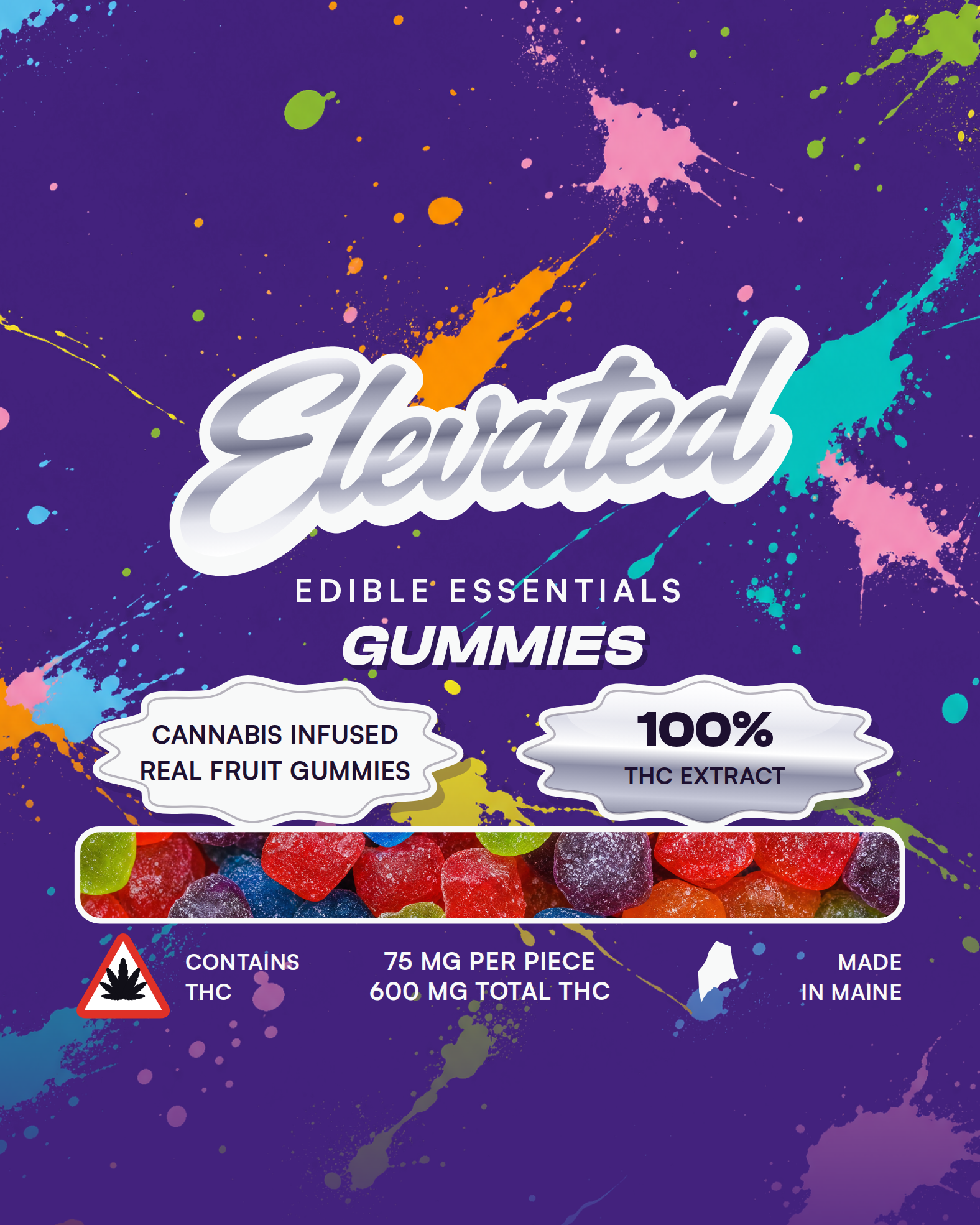

75 mg a piece, 600 mg a packOn the front foot and filled in on the nutrition panel. 600 ÷ 75 = 8 pieces, so the panel declares 8 servings per container. That is arithmetic on your two numbers — say the word if the pack is not 8.
“THC Extract”, not “Live Sauce”Replaced everywhere it appeared: the front badge now reads 100% THC EXTRACT, and the phrase is gone from the back.

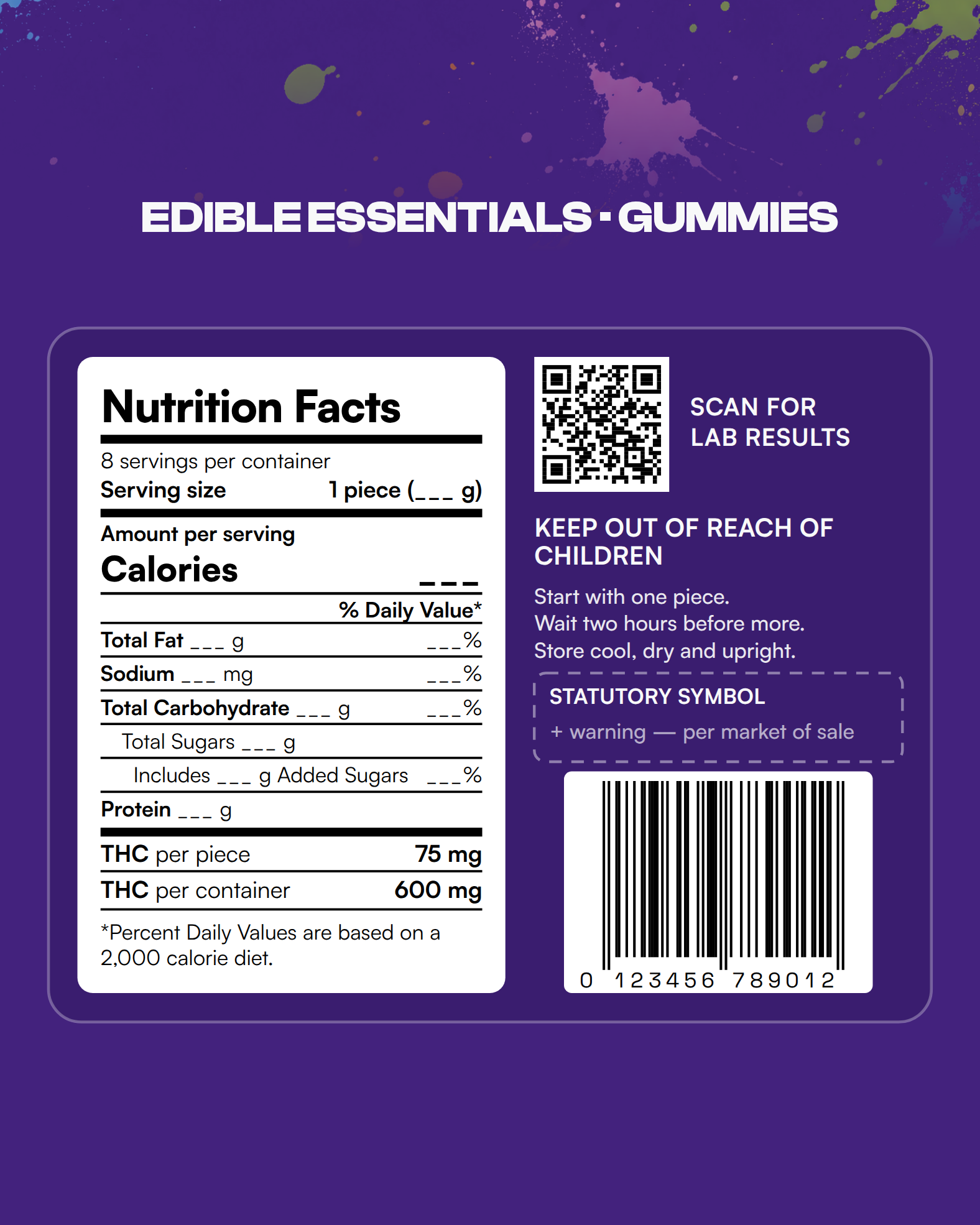

The back is now the simple versionNutrition panel, QR, three short lines. The five dashed reserve boxes, the warning paragraph, the distributor block and the old spec line are all gone.
Nutrition values are visible blanksEvery figure the factory has not sent yet prints as a blank rule. Only your two THC numbers are filled. Send the sheet and they drop straight in.

Option B

Without AiR-ESS

Elevated script + GUMMIES only

⬇ Complete release — option B Everything for this option in one file — all three panels, all 13 numbered plates each, the CMYK TIFFs, the factory spread, the contact sheet and both documents. Nothing to merge, nothing shared with the other option, nothing from the other option inside it. Held back to fit the host’s 25 MiB per-file limit: source art and the supplied dieline — separate downloads below. No print plate has been left out. 24.8 MB Factory spread only The imposed sheet on the template’s own grid, 1:1 and dimensioned. Already inside the complete zip — here on its own because it is the one file the plant plates from. 2.9 MB Source art The painted splatter frame at 400 dpi and the proof-only product shot. My working files — reference, not a print plate. 2.9 MB The supplied dieline The factory template this job was built on — the file you sent me. Included here for the plant; it is an input, not something I produced. 3.7 MB

Option A

With AiR-ESS

Elevated script + AIR-ESS GUMMIES

⬇ Complete release — option A Everything for this option in one file — all three panels, all 13 numbered plates each, the CMYK TIFFs, the factory spread, the contact sheet and both documents. Nothing to merge, nothing shared with the other option, nothing from the other option inside it. Held back to fit the host’s 25 MiB per-file limit: source art and the supplied dieline — separate downloads below. No print plate has been left out. 24.8 MB Factory spread only The imposed sheet on the template’s own grid, 1:1 and dimensioned. Already inside the complete zip — here on its own because it is the one file the plant plates from. 2.9 MB Source art The painted splatter frame at 400 dpi and the proof-only product shot. My working files — reference, not a print plate. 2.9 MB The supplied dieline The factory template this job was built on — the file you sent me. Included here for the plant; it is an input, not something I produced. 3.7 MB

The documents, loose

A copy of each is already inside both complete downloads. These are here so you can read them without unzipping 25 MB. Same folder layout, plate numbering and BLACK-is-<what> naming as the Spliff release, because it is the same plant.

00-READ-ME-FIRST.txtRead without unzipping. A copy of each is already inside both complete downloads.6 KB 01-PRINT-SPEC.txtRead without unzipping. A copy of each is already inside both complete downloads.3 KB

Still needed before plates

None of these are guesses in the artwork. Each one is a labelled, dimensioned empty reserve on the pack, so the layout already holds the right amount of room for the real content.

Nutrition values from the factoryThe reason for the blank rules — calories, fat, sodium, carbohydrate, sugars, protein, and the gram weight of one piece.
Net weight of the packNot on the pack yet. It needs the piece weight, so it comes with the same sheet.
Ingredients + allergen declarationComes from the final formulation. It is not on the simplified back — say if you want it there and I will fit it under the nutrition panel.
Statutory symbol + warning wordingReserved, 38.2 × 9.2 mm on the back. Set by the market of sale — counsel fills it. If Maine needs more room than that, the nutrition panel can give up 3 mm.
Real GTINBarcode carries an obvious placeholder, 0123456789012. It is a real scannable EAN-13 at the GS1 minimum size — only the number is fake.
The die itselfGeometry is lifted 1:1 from the template you sent, but that is Higher Forms’ tooling. Get the plant’s confirmed dieline for your own PO before plates.
“100% THC Extract” and “Real fruit”Still claims rather than measurements — they came off your approved render and I have only swapped the wording you asked me to swap. Confirm both before plate.
Original wordmark vectorThe Elevated script was re-vectorised from the 558 px web PNG. Clean vector now, but send the AI/EPS if it exists and I’ll swap it for perfect edges.

Specification

Format	Stand-up pouch, zipper + tear notches, child resistant
Printed face	101.6 × 127 mm, front and back
Bottom gusset	101.6 × 50 mm
Bleed	3 mm all round
Safe area	5 mm sides and bottom
Zipper	26.5 mm from the top of the face
Window	85.6 × 9.5 mm clear, knocked out of the white plate and the varnish
Potency	75 mg THC per piece, 600 mg per pack, 8 pieces
Plates	CMYK + opaque white + spot UV + hot-stamp foil (optional)
Barcode	EAN-13 at 80% = 29.83 mm, the GS1 minimum for retail
Resolution	Type, badges and codes vector; painted frame 412 dpi native, placed at 400 dpi; TIFFs 400 dpi
Max ink coverage	284.7%, 0.0% of pixels over 300%
